For Quality That Counts...


LED Lighting is the new craze and we are at the forefront of this technology.
We are one of Australia's largest suppliers of Strip lighting
in both kit and made-up form.

Super Bright LED Light Strips For Cars, Boats, Cabinets, Etc.

Easy to Install, Low Power, Ultra Reliable Lighting.
Available with Red, Green, Blue, Yellow, White or Pink LEDs.

"Now on more flexible PCB"



When Buying LED Lights consider these things

Quality of product, Company Background & Price

If it sounds too cheap then it is
If it doesn´t have a brand name then don´t buy

Most of us have MR16 Globes so we are aware
of a certain standard of brightness

Good Quality MR 16/ 50W globes = 800-850 lumens each, so when buying LED equivalents, don´t look at watts, Look at Lumens output !



Super Bright LED Light Strips
6 Led Strip Lite designed for small areas, eg: Seat Lighting, Fish tanks, etc
12V @ 100mm (L) x 6.5mm (W) x 5mm (H)
Red or Yellow LEDs $12.00 ea, White, Blue or Green LEDs on PCB $15.00 ea.



Super Bright LED Light Strips
5 Led Strip Lite for Auto under dash or seats
150mm x 15mm x 5mm
Red or Yellow LEDs $10.00 ea, White, Blue or Green LEDs $12.00 ea.


Super Bright LED Light Strips
6 Led Strip Lite for Auto under dash or seats
12V @ 270mm x 15mm x 5mm
Red or Yellow LEDs $11.00 ea, White, Blue or Green LEDs $13.00 ea.


Super Bright LED Light Strips
12 LEDs High brightness strip for signage use
Designed for A4 Perspex signs @ 12V, 285mm x 11mm
Red or Yellow LEDs $15.00 ea, White, Blue or Green LEDs $20.00 ea.


Super Bright LED Light Strips
This strip is currently our longest at 585mm long
Features 12 X Ultrabright Leds and can be cut in half if required or joined at ends
It is flexible enough to bend end to end
12V : L=585mm x W=10mm x H=5mm
Red or Yellow LEDs $15.00 ea, White, Blue or Green LEDs $20.00 ea.
Also has connectors for joining in multiples.


Super Bright LED Light Strips
Tri-colour Led strip - Red, Green & Blue Ultrabright Leds
For use with our Tri Colour Module   (See below)
Features 72 Ultrabright wide angle Leds @ 120 Deg for sign Lighting etc
Can be joined at ends to lengthen or cut in half for smaller jobs
L=580mm x W=13mm x H=3mm
$65.00 ea


Super Bright LED Light Strips
This strip is one of our Brightest at 585mm long
Features :12 X High Power 4000mcd Ultrabright Leds and can be cut in half if required or joined at ends
It is flexible enough to bend to 50 Degrees
12V or 24V : L=585mm x W=15mm x H=5mm
Red or Yellow LEDs $20.00 ea, White, Blue or Green LEDs $25.00 ea

(Our White color is approx 0.35 x 0.364 CIE or 4800K - 5000K)


Super Bright LED Light Strips
This strip is our Newest & Brightest at 500mm long
Features : 30 X High Power, Nichia, 20 Lumen, Leds and can be cut in 45mm sections or joined at ends
It is available in 12V, 480ma or 24V, 240ma
L=500mm x W=14mm x H=7mm
Warm White ( 3500K) or White (5000K) @ $45.00 ea
this is as bright as a flouro !

(Our White color is approx 0.35 x 0.364 CIE or 4800K - 5000K)
currently working on tube for this as it is too big (height wise) for our current line of tube ( 15 x 6 x 1200mm)

All Strip Boards are available with Clear PVC Tubing (Cut to length) and black end caps for Mounting Outside



Also available

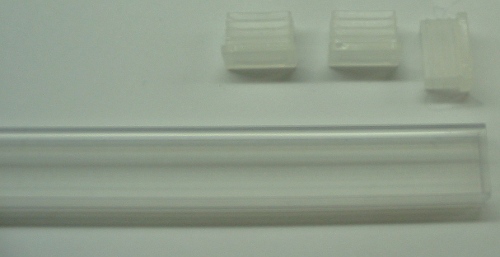

in 15mm x 8mm x 1200mm Polycarbonate Clear tube and End caps
Polycarbonate Clear tube and End caps
$6.00 1200mm Piece and 2 x End caps.

Super Bright LED Light Strips

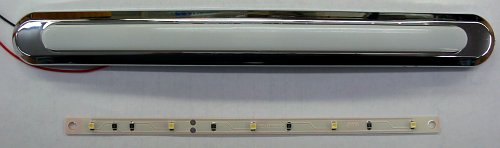

5 LED White Strip lite
Direct Replacement for Limousine Lights
$10.00 ea
Housing NOT Included

Super Bright LED Light Round DiscSuper Bright LED Light Round Disc
24 LEDs Round Disc
39mm diameter
Red or Yellow LEDs $24.00 ea, White, Blue or Green LEDs $30.00 ea.


Crome Housing Brushed Aluminium Housing
24 Led Ultra Slim
66mm Round Diameter x 8mm Depth & runs at 12V @ 200ma and is approx 2.2Watts
Red or Yellow LEDs $28.00 ea, White, Blue or Green LEDs $35.00 ea.


24 Led White Cabinet Lite
Led Disc includes 24 x Nichia White 5mm Leds
Rated 18000mcd - 24,000mcd @ 40 Degrees ea
Colour is daylight white, Runs at 100ma constant current
Also available with Warmer Leds 0.4 x 0.4 which is warmer colour (12,000 mcd/ led)
Two Types: Daylight White or Evening-Warm light
Please state when ordering which colour you would like
@ $35.00 ea Case Included
Cases available separately in White, Chrome, Black & Satin, @ $5.50 ea
or complete unit assembled & tested with 1 Year Warranty @ $42.00 ea


We also have colour discs
30 x 5mm 40deg LEDs
All our coloured 5mm leds are Approx 30-35 Degrees and 6000mcd -10000mcd in Output Brightness
(Please Note: these can hurt your eyes when looking directly at them and this must be avoided).

Red & Amber @ $25.00 ea
White, Blue & Green @ $33.00 ea


Mini coin size lite
18 x 5mm Leds on Mini Disc
34mm round PCBoard and sits into TL101 Housing
Sansen Red, Yellow leds $12.00 kit or $15.00 assembled ( 8000Hrs)
Sansen White, Blue, Green $15.00 kit or $18.00 assembled ( 8000Hrs)
Nichia 500D, 5000K, 15 degree, $24.00 kit or $28.00 assembled ( 40000Hrs)
Nichia 500D, 5000K, 40 degree, $24.00 kit or $28.00 assembled ( 40000Hrs)
Kit = 18 Leds + PCB
Housing in White $4.50 ea

Must use regulator in line for led cluster, see below



When we make our products we base it on 2 - 3 year Production

51 LED Down light replacement

51x 5mm Nichia LEDs @ Approx 40 Degrees and 6000mcd- 9000mcd each led in Output
Or
51x 5mm Nichia LEDs @ Approx 15 Degrees and 26000mcd- 31000mcd each led in Output
The LED disc lite PCB is 68mm Round + Mounting Tabs
Designed to fit most 92mm "Gimble Downlight Housings"
Connect up to 12 Pcs to "Atco" style transformer and away you go.

Specifications:
51 LED Cluster runs at 300ma ( Quality, Ultra-reliable, Nichia Leds )
Heat sink is used to cool LED's PCB
Nichia 5mm (White) 5000K Leds 40 Degree, 40KHrs/70% or
Nichia 5mm (White) 5000K Leds 15 Degree, 40KHrs/70%
AC to DC converter and regulator PCB sits on top and connects to "Atco" type 12VAC Halogen transformer (Not electronic)
1 x Atco Transformer can run up to 12 of these lights !
(Based on 50W Down Globe of 4.2A, Our total = 3.6A)
Available in White (5000K) Daylight White, Red, Blue, Green or Amber
Our white leds do not show blue in them like some others, they are in the warmer C0 range.

Price :
Includes PC Board, 51 x LED's, Resistors, Heat sink, Black dust cover, 92mm Cast Housing and Regulator Kit (R030) - 320ma

White Leds  @ $45.00 Assembled
Green Leds  @ $45.00 Assembled
Blue Leds  @ $45.00 Assembled
Red Leds  @ $32.00 Assembled
Amber Leds  @ $32.00 Assembled

Housings available, White or Brushed Chrome @ $4.50 ea



MR16 12V AC, 14V DC Linear Driven 4 Chip Nichia Led
MR16 Globe Based on Our Nichia Led Range. (Watch it get copied !)
This product uses
4 x Nichia White 5000K 183 Chip Leds or,
4 x Nichia Warm 4000k 183 Chip Leds

440 lumens output
Price is $20.00 ea inc GST
Status: In Production
(Watch out for inferior Chinese Products with radiated RF noise)



Our 4 x Led Light is now Very Popular
4 x Nichia, 5000K white,183 Chips
Requires 12V AC @ 700ma ea, direct replacement to 50 watt down lights
Built in regulator at rear and connects to Existing MR16 Connector
Regulator sits in Base of heatsink and thermally adjusts power if overheated , >60 degrees > 600ma
Face = 90mm, Silver or White Finish
Hole Cut out = 71mm, Depth = 135mm
Heatsink is a massive 105mm deep and is 400Gms in total Weight
We are stocking both narrow 25-28 degree and wide 40-45 degrees Lenses
5 x units can be used with one "Atco" inductive transformer
No special transformers are required, backward compatible with older
Halogen transformers and Dimmable!

Price is $45.00 ea inc GST
Status: In Production
(Watch out for inferior Chinese Products with radiated RF noise)



Please note:
Do not stare directly at the LED's as they can cause eye damage,
same as staring at downlights.


Regulator
Three types of Regulator available
Regulator- RS6070
To be Used With 'ATCO' Type Halogen Transformer
Converts AC to DC and Regulates the Current to Drive 6 Led Discs
12-14VAC Adaptor / Regulator @ 100ma x 6
Will Power 6 x 18 LED Discs (Coin Led Lites)
$28.00 ea


Regulator- RS6010
To be Used With 'ATCO' Type Halogen Transformer
Converts AC to DC and Regulates the Current to Drive 6 Led Discs
12-14VAC Adapter / Regulator @ 100ma x 6
Will Power 6 x 24 LED Discs ( Cabinet Led Lites)
$28.00 ea


Regulator- RS6015
To be Used With 'ATCO' Type Halogen Transformer
Converts AC to DC and Regulates the Current to Drive 6 Led Discs
12-14VAC Adaptor / Regulator @ 150ma x 6
Will Power 6 x 30 LED Discs (30 Led Disc Lites)
$28.00 ea


Regulator
Inline regulator for use with Led clusters
Part No RS070 is 70 ma for 18 led disc lites
Part No RS010 is 100ma for 24 Led disc lites
Part No RS040 is 140ma for 39 Led disc lites
$6.50 ea, kit or $7.50 ea, assembled



Lazer Led Flasher
Lazer Led Flasher
Now available our small LED flasher controller kit
This has a push button operation and includes a pre-programed 'PIC IC'
It works as follows:
Press button once,
     Leds come on
Press button again,
     Leds will fash fast x4 then stop then repeat
     (Similar to police lights)
Press button again,
     Leds will glow to full bright then dim to nothing then repeat
     (Called Breathing effect)
Press button again,
     Leds will switch off and controller goes into sleep mode

$25.00 ea kit or $33.00 ea pre made & tested
Size is 30mm L x 16mm W


Lazer Led Flasher
Tri Colour Module                               New
Control module that makes leds scroll through colours at 5 second intervals
and drives up to a total of 10 x 580mm strips
Scrolling time can be changed by resistor
$28.00 ea





Examples:

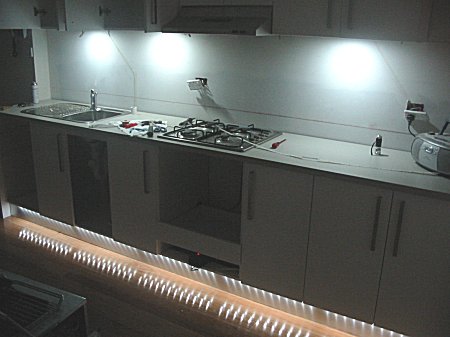

Example
This job used white strip lites along base and white slim lines above bench tops

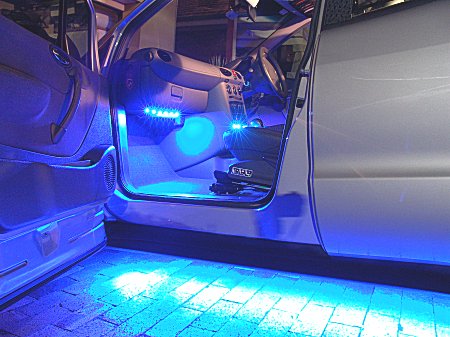

Example
This job used Blue strips under dash and carriage



PLEASE NOTE: Payment by money order or cheque only , to:
Lazer Security   35 Dawes St - Little Bay - 2036 - NSW
Phone 02 9311 1500 Fax 02 9311 1400
We regret that credit cards cannot be accepted.
Prices are in Australian dollars.
Postage for within Australia only, please add $2.00 per unit.
For International orders, please Contact us .

Registered trademarks are the property of their respective owners.
Images are for illustration purposes and to be seen only as guides to the actual products.
